Audio Amplifier ICs

Waytronic produce high-quality audio special purpose components. Waytronic audio amplifier IC incorporate cutting-edge technology and innovative designs to deliver superior audio performance.There are many types of power ampliher chips, ranging from 1W to 64W. It is widely used in application such as automotive: Speaker amps, speakers, sound bars etc.

Audio Amplifier ICs

There are many types of power amplifer chips, ranging from 1w to 64W. The power ampliher chipscurrently promoted are all debugged with our voice chips, and have the highest sound quality matching.

Waytronic audio amplifier IC incorporates built-in overcurrent protection, short circuit protection, and overheating protection.

The operating temperature range of the chip can reach -40-85℃

It has been widely used in home audio, security alarm equipment, smart home, broadcasting systems, children’s toys, and other equipment.

Features

Lead-free package that meets Rohs standard
High power supply rejection ratio (PSRR)
Up to 90% efficiency
The original AERC technology provides excellent full-bandwidth EMI suppression
Excellent “pop-click” (pop-noise) noise suppression ability
Excellent low-noise button system

Comparison: Audio Amplifier IC

Part Number	Voltage	Driving Power	Static Current	Amplifier Type	Channel Number
WT4890	DC 2.2~5.5V	8R1W	3~9mA	AB	single track
WT8002	DC 2.2~5.5V	4R2.5W	3mA	D	single track
WT85711	DC 2.2~5.5V	2R5W	5mA	AB/D	single track
WT8509	DC 2.5~9.2V	4R8W	3mA	AB/D	single track
WT8623	DC 5.7~17V	4R30W	6.5~9mA	D	single track
WT1312	DC 1.8~6.0V	4R2W	3uA	PWM	single track
WT8871	DC 2.5~5.5V	2R5W	5mA	AB/D	single track
WT8302	DC 2.5~6.0V	4R2.9W	3mA	D	single track
WT9110	DC 5.0~15V	4R20W	20mA	AB/D	single track
WT8576	DC 2.7~6.2V	2x8R3W	10mA	AB/D	single track

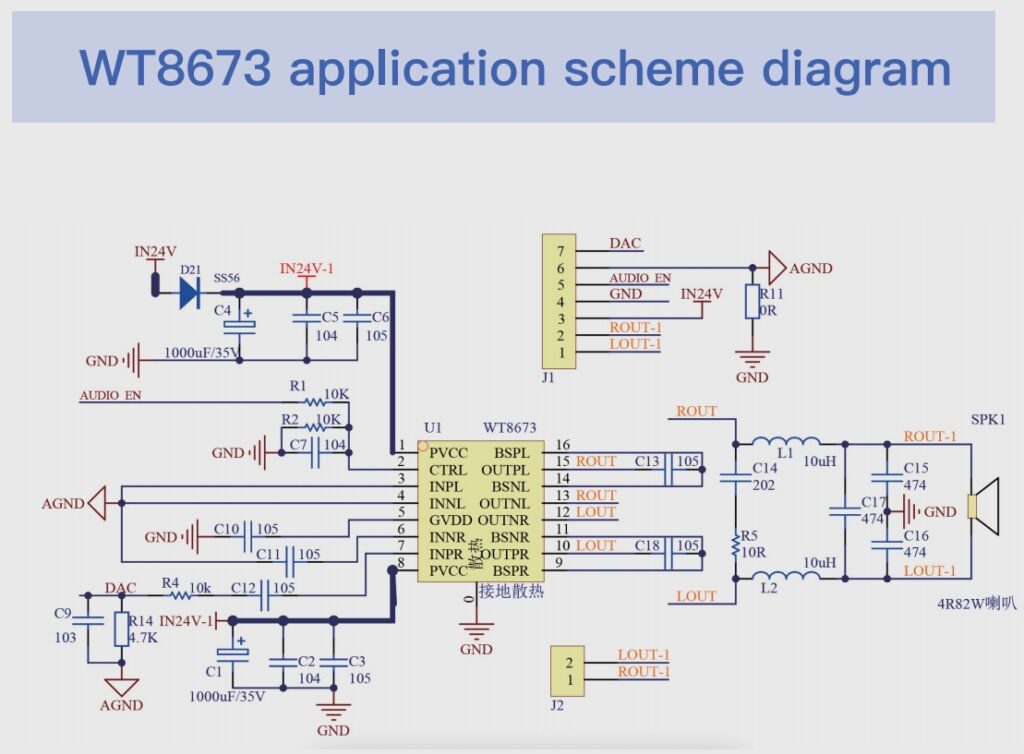

WT8673	DC 5.0~26V	2x4R80W	9mA	Stereophonic sound	single track

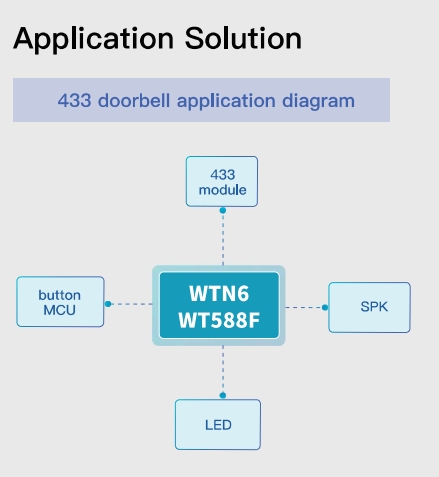

High-power Voice Chip

Compared with traditional playback voice chips, the main adjustment is to adjust the outputcircuit. The voice chip can output a power of up to 3W without the need for an additional poweramplifer chip to directly drive an 8R3W speaker. Two series have been launched,WTN6040FP-14S and WT588F02BP-14S. They are 40 seconds and 170 seconds of voice respectively. Both chips can repeatedly erase and replace the internal voice fles of the chip through theprogrammer.

WTN6 Series

Operating voltage:2.4V~5.5V
Standby current is less than 5ua
Supports a maximum of 224 voice address segments
12-bit PWM, direct drive 8R, 1~3W speaker
Control mode: Digital pulse, button, one-line serial port,two-line serial port
Voice capacity: 40 seconds

WT588F Series

Operating voltage 2.2~5.5V; standby current less than 5ua
16bit PWM/DAC output, can directly drive 8R, 1~3W speakers
Customers can replace the internal voice content of the chipthrough MCU or supporting programmer.
Supports one-line serial port and two-line serial port (UART and lCcommunication)
Support 5000 address segments
lt has hardware SPl interface, UART interface, built-in comparatorand other interfaces. Various functions can be customized forcustomers.

Series	Model	Communication Interface	Audio Output	Capacity (seconds)	Sampling Rate	Package
WTN6 Series	WTN6040FP-14S	single line/double line	directly drive 1-3W speaker	40s	6K-32K	SOP14
WT588F Series	WT588F02BP_14S	single line/double line	directly drive 1-3W speaker	170s	6K-32K	SOP14
