WT42 Laser Distance Module: Smart Hair Dryer Safety & Precision

1. WT42 Laser Distance Measurement Module: Making Hair Dryers “No Longer Hot to the Touch”

When it comes to hair dryers, everyone has probably experienced this: trying to dry your hair faster, you move the dryer too close, and suddenly a wave of heat burns your scalp, forcing you to pull it away quickly; or when styling your hair tips, you can’t get the distance right — too far, not enough heat, and the style just won’t hold. It feels like walking a tightrope — too close, it burns; too far, it’s ineffective. The perfect balance always seems elusive.

Why does this happen? The reason is simple: traditional hair dryers are like “blind operators.” They just blow hot air according to preset levels, without knowing how far they are from your hair or scalp. It’s like driving a car without being able to see the road ahead — problems are bound to occur.

Now, with the WT42 series laser distance measurement module, the hair dryer is equipped with a pair of “intelligent eyes.” It can sense the distance from your hair in real time and adjust the temperature dynamically, completely solving a problem that has plagued users for years.

2. How Does the WT42 Series Laser Distance Measurement Module Work?

You might wonder how such a small module can measure distance so accurately. Let’s uncover its secret.

The core principle behind this technology is called the Time of Flight (ToF) method. It sounds complex but is easy to understand. Imagine shouting across a valley and hearing an echo — by measuring the time it takes for the sound to return, you can calculate how far away the opposite wall is. Laser ranging works the same way, except it uses light instead of sound.

Specifically, the hair dryer’s built-in laser emitter projects a beam of near-infrared light (which is safe for human eyes) at a small angle onto the surface of the hair or scalp. When the laser hits the target, part of it reflects back and is captured by the module’s photodetector. Meanwhile, an internal high-precision timer records the time between the laser’s “departure” and “return.” Using the formula distance = (speed of light × time) ÷ 2, it instantly calculates the current distance. The process takes only 0.1 seconds.

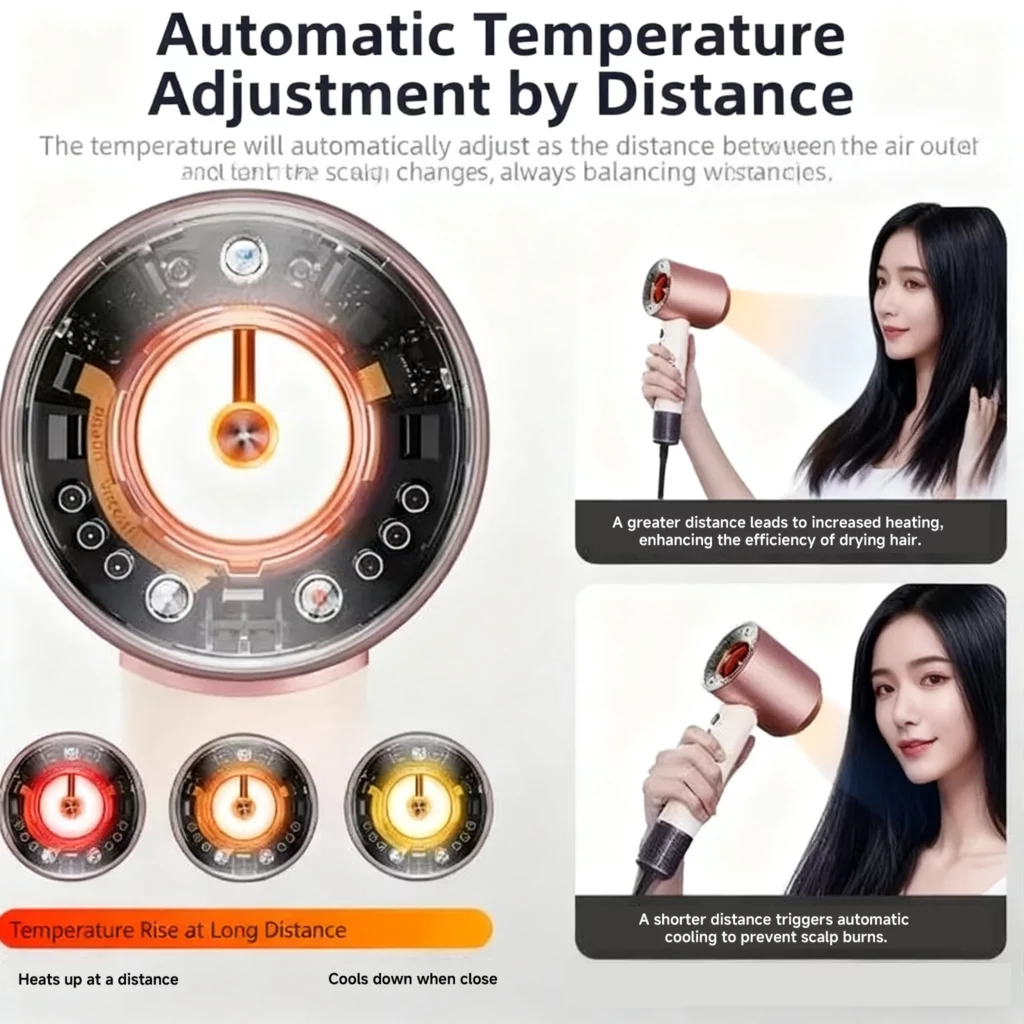

With this precise distance data, the dryer’s “brain” can make intelligent decisions. For example:

• When the distance is less than 10 cm, it immediately reduces the temperature to a safe 55°C.
• When the distance is between 10–25 cm, it automatically raises the temperature to 65–75°C for efficient drying.

In this way, the hair dryer transforms from a “dumb machine” into a perceptive “smart assistant.”

3. WT42 Laser Distance Measurement Module: More Than Distance Measurement — A Comprehensive Safety Guardian

The WT4203A-C01 module does much more than just measure distance — it serves as a multi-functional safety guardian.

1. Anti-scald protection:
When the dryer gets too close, the module immediately detects the critical distance and sends a signal via the I/O port to the control unit, which rapidly reduces heating power or even stops it entirely. This response is several times faster than human reflexes, effectively preventing burns before they occur.

2. Foreign object detection:
Ever accidentally sucked hair or other objects into a dryer’s air inlet? The WT4203A-C01 continuously monitors the heating zone, and if any obstruction is detected, it instantly sends a feedback signal to prevent overheating or potential hazards.

3. Customizable safety distances:
The detection range can be flexibly adjusted for different users or scenarios — set a safer distance for children or elderly users, or fine-tune parameters for professional styling. This customization allows one dryer to meet the needs of the entire family.

4. WT42 Laser Distance Measurement Module: Hardcore Technology in the Details

Tech-savvy users may now ask: how powerful are the technical specs of this module?

1. Millimeter-Level Accuracy

The WT4203A-C01 achieves millimeter-level precision within a working range of 5–50 cm, with an error margin within ±0.5 cm — far superior to ultrasonic sensors (±3 cm) and more stable than infrared sensors.

2. Strong Light Interference Resistance
LED lighting in bathrooms or sunlight can interfere with sensors. However, WT4203A-C01 uses advanced filtering technology to receive only its own emitted wavelength. It maintains accuracy degradation under 5% even under 50–5000 lux lighting, while infrared sensors often suffer serious drift.

3. Strong Penetration Capability
The module can accurately measure through a 4 mm cover plate, while most similar modules fail beyond 1 mm. This breakthrough allows the sensor to be hidden inside the dryer casing — both aesthetically pleasing and practical.

4. Optimized Algorithms
Black materials absorb light and are difficult to measure accurately. But with algorithmic optimization, WT4203A-C01 can still maintain ±1 cm accuracy on dark surfaces, ensuring stable performance regardless of hair color.

5. Miniaturized Design

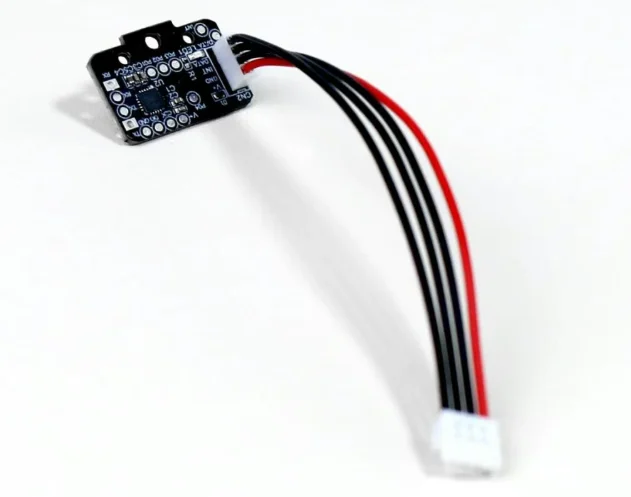

The integrated design combines the laser emitter, photodetector, and signal processor into one unit under 1 cm³ — roughly the size of a fingernail. This compact size allows seamless embedding in the handle or nozzle without taking extra space.

5. UART Configuration and Easy Integration

The WT4203A-C01 module’s high integrability makes it an engineer’s favorite. It supports standard UART communication and can interface directly with the dryer’s main MCU without extra circuitry, greatly reducing R&D cost and production time.

The module also provides extensive serial commands for setting trigger distance, output mode, and auto-print intervals. For example, you can configure an alert to trigger when the distance is under 20 cm with a simple command. Calibration functions (penetration and distance) ensure optimal performance in various installation environments.

Moreover, the laser sensor has no mechanical wear and includes intelligent temperature calibration. Even after 200 hours of continuous operation or 10,000 activations, its detection accuracy remains consistent. Compared with infrared sensors, its lifespan is 30% longer, making it a cost-effective long-term solution.

6. From “Hot Potato” to “Caring Hair Partner”

When precise distance sensing meets intelligent temperature control, the hair dryer evolves from a basic heating tool into a truly smart personal-care device.

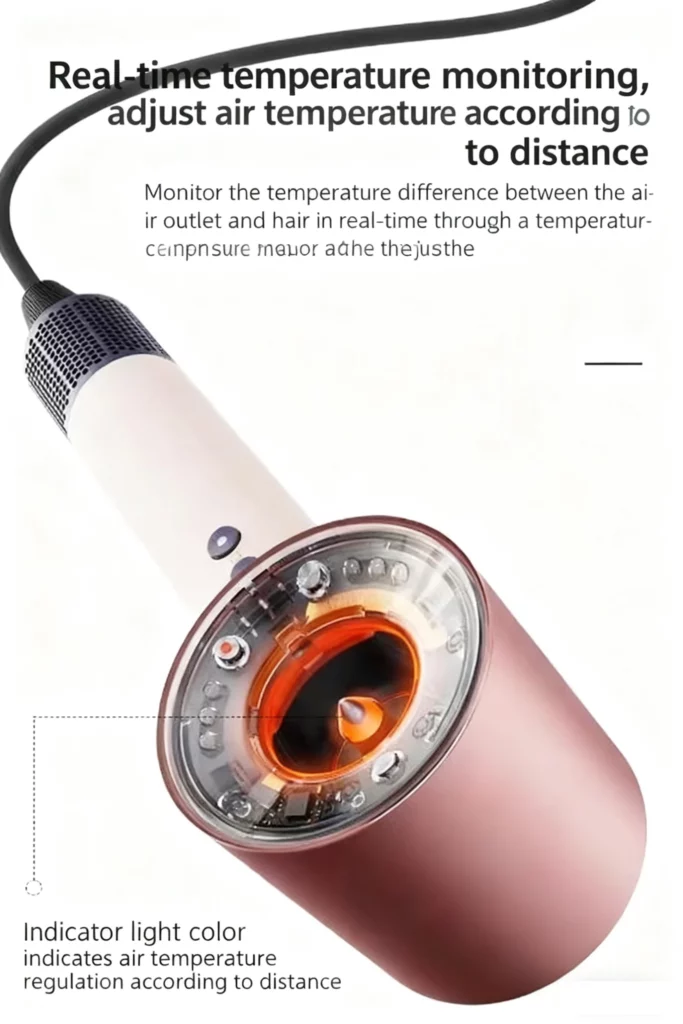

Take the basic drying process as an example: traditional dryers either use high temperatures that damage hair or low temperatures that dry slowly. With WT4203A-C01, the dryer dynamically adjusts temperature based on distance in real time. As you move it closer or farther, the temperature changes instantly, always staying within the optimal range. This ensures both drying efficiency and hair protection.

Tests show that hair dryers using this module significantly reduce heat damage while retaining over 95% of internal moisture. For the 180 million young people who use dryers regularly but worry about hair damage, this is a breakthrough.

In advanced models, the laser sensor even integrates with other features — for instance, when it detects the “care distance” of 15–20 cm, it automatically activates the essence atomization function, turning care essence into 7 μm ultrafine particles that penetrate deep into the hair shaft, improving absorption efficiency by 3–5 times.

Thus, “drying” and “nourishing” truly merge — drying your hair becomes a deep-conditioning process that saves both time and effort. The WT4203A-C01’s integration into hair dryers essentially brings industrial-grade precision sensing into daily personal care.

It not only improves drying efficiency but transforms our approach to hair care — from passively adapting to devices, to devices intelligently adapting to us.

Looking ahead, as AI and multi-sensor fusion technologies advance, future versions may combine laser ranging with hair-type recognition for optimal temperature matching, or integrate with smart home systems to adjust distance-temperature curves based on humidity. Over time, it could even learn individual user habits to provide fully personalized care.

No matter how the technology evolves, the core of this hair care revolution remains the same — making technology more attuned to human needs and adding warmth to every detail of care.

When a hair dryer can precisely sense every centimeter of distance and intelligently regulate every degree of temperature, it becomes more than just a drying tool — it becomes a symbol of thoughtful living.

This is the transformation brought by the WT4203A-C01 laser distance measurement module — a small yet profoundly significant innovation redefining the future of personal care devices.
