WTN6040-8S

Features

Working voltage: 2.4V~5.2V.
In standby mode, quiescent current less than 5uA (After the voice playback is completed, the
DATA/CLK signal line can stay at a stable level for about 2 seconds to sleep)
Accurate +/-1% internal oscillation, with low voltage reset (LVR=1.8V) watchdog timing
PWM audio output, able to drive 8Ω/0.5W speaker and buzzer directly; DAC audio output, able to have
external amplifier.
Built in watchdog.

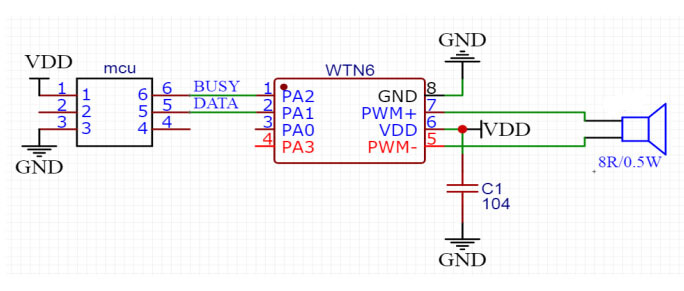

With serial port control mode: count pulse, button, one-line serial port, two-line serial port (up to 224
voices can be loaded, detailed explanation will be provided later)
Support output function in BUSY state(The BUSY pin of the standard program defaults to high level,
and it is low level during voice playback. In addition, in the serial port control mode, only when the
voice chip receives the correct voice address sequence BUSY pin will there be a level

Description

Overview

WTN6040 is a multifunctional, low-power, high-performance CMOS voice chip. voice lengths are 40s.The audio sampling rate is currently up to 32kHz, 16-level volume control, and two audio output modes: PWM output and DAC output. Accurate +/-1% internal oscillation, no need to add external oscillation, with ultra-low power standby.

Pin Description

Limited Parameters

Mark	Range	Unit
VDD~GND supply voltage	-0.5~+5.2	V
Vin input voltage	GND-0.3< Vin <VDD+0.3	V
Vout output voltage	GND < 0.3V ~ VDD+0.3	V
Top storage temperature	-20~ +75 (Use with caution in industrial special occasions)	ºC
