Summary
WayTronic’s WT588F02KD-32N single-chip solution integrates voice, LED driving, and storage functions to solve the common issues of broadcast lag and audio-light desynchronization caused by multi-chip coordination in traditional blood pressure monitors. With 16-bit DSP for synchronized command processing, it enables precise audio-visual alignment while reducing cost and enhancing system stability.
This article is written by Jackson Lee, a voice chip expert with 11 years of experience at WayTronic.
Scene Reproduction
Today, let’s talk about a “hidden hero” in the field of medical electronics — the WT588F02KD-32N voice and display control chip. Specifically designed for medical devices like blood pressure monitors, this chip addresses multiple pain points that traditional solutions struggle with — all in one compact chip.
Before we introduce this new friend, imagine this: you’re at home checking your blood pressure. The numbers just popped up on the display, but the voice is still announcing the previous result — or worse, the display looks blurry and hard to read. Frustrating, right? That’s exactly the kind of issue conventional blood pressure monitor solutions often face.
Problems with Traditional Solutions
Traditional blood pressure monitor solutions are like a band without a conductor, requiring multiple “musicians”—such as the voice chip, storage unit, amplifier module, and LED driver chip—to operate independently. This design presents three major problems:
1. High costs: It’s like having to visit several stores to buy a set of furniture;
2. Lengthy development cycles: Engineers must coordinate communication between multiple chips;
3. Audiovisual misalignment: Multi-chip collaboration often leads to “out-of-sync” issues, resulting in a time lag between the voice broadcast and the screen display, and a time difference between what the user hears and what they see.
This is like ordering takeout, and the delivery person delivers the rice, side dishes, and soup at different times. While they all arrive in the end, the dining experience is significantly diminished. For medical devices like blood pressure monitors, which require precise measurement data, this “information misalignment” can lead to user misinterpretation, compromising the accuracy of health monitoring.
How can this industry challenge be solved?
The WT588F02KD-32N offers an elegant answer: a single-chip integrated solution that directly addresses the pain point.

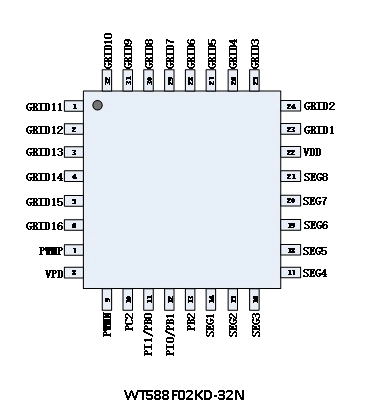

This chip is like a “sound-light synchronized brain” tailored for blood pressure monitors, integrating voice processing, LED driving, memory management, and other functions into a small 4×4mm chip.
So, how can this industry challenge be solved?
The WT588F02KD-32N offers an elegant answer: a single-chip integrated solution that directly addresses the pain point.
This chip is like a “sound-light synchronized brain” tailored for blood pressure monitors, integrating voice processing, LED driving, memory management, and other functions into a small 4×4mm chip.

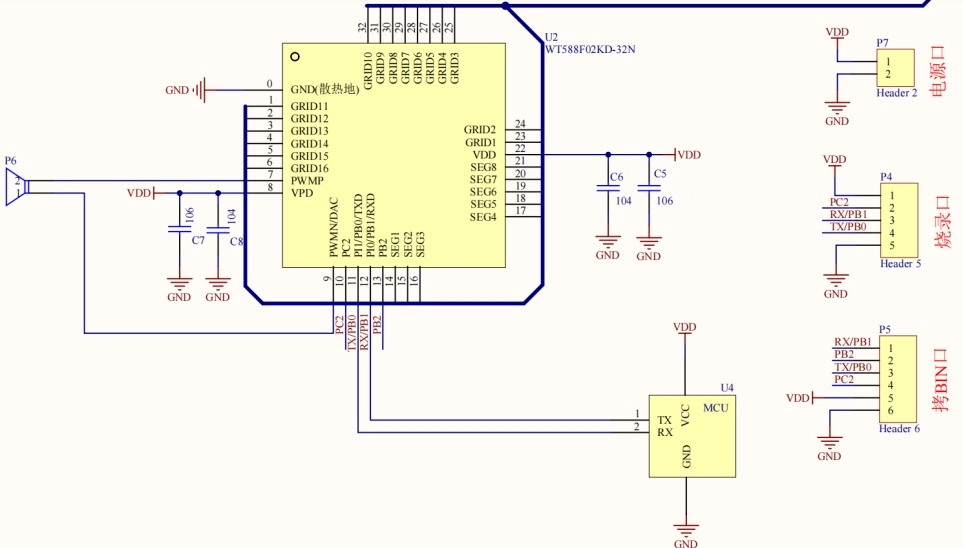

Let’s take a look at how it works.
Once the blood pressure monitor completes its measurement, the WT588F02KD-32N’s built-in 16-bit DSP core simultaneously handles both voice announcement and digital display.
Utilizing its matrix LED direct-drive architecture, the chip can illuminate the 16-digit digital display with a powerful 50mA drive current, ensuring clear and stable numerical display.
At the same time, the DSP core accesses the built-in voice library and achieves low-latency synchronization of “announcement + display” through the combined playback function (B0 instruction). This synchronization is like a carefully choreographed concert, where the conductor (the chip) ensures that all musicians (the voice and display) play to the same beat. The user sees the exact same numbers as the announcement, eliminating any awkward audio/video mismatches.
Blood pressure monitors need to display complex data such as high and low blood pressure, heart rate, and more in real time, placing extremely high demands on display quality. Insufficient LED drive current in traditional solutions often results in flickering or uneven brightness, like a dying lightbulb, flickering and blurring the lines.
The WT588F02KD-32N’s matrix LED direct-drive architecture is like a “professional-grade power supply” for digital display devices. A single LED can drive up to 50mA. What does this mean? Simply put, it provides enough power to clearly illuminate each digital segment. Combined with dynamic scanning control technology, the chip precisely controls the brightness and refresh rate of each digital display, ensuring stable and clear display of measured values.
More importantly, this hardware-based direct drive approach eliminates the latency associated with multi-stage signal transmission in traditional solutions. It’s like the difference between direct illumination with a flashlight and illumination reflected through several mirrors: the former is clearly more direct and efficient.
Compared to separate solutions that require multiple chips to work together, the WT588F02KD-32N restructures the entire design logic with high integration. This shift is like going from a “hodgepodge” to a “one-pot” approach, simplifying circuit design and significantly reducing costs.
The chip’s built-in 16-bit DSP core directly supports WAV/T3Z audio decoding with a sampling rate of up to 24kHz, ensuring crystal-clear voice announcements.
The chip also includes 200 seconds of integrated voice storage, sufficient to store all the necessary voice prompts for a blood pressure monitor. Customers can update the voice library using the included downloader, just as easily as changing a ringtone on a mobile phone.
For development, the chip utilizes a mature UART command system with a default baud rate of 9600. Engineers can access various functions using simple serial port commands.
For example, the AE command is used for volume adjustment, and the AF command is used for track loop mode. The entire development process is as intuitive as controlling a TV remote. This streamlined development model can shorten product development cycles by over 50%, enabling blood pressure monitor manufacturers to launch new products more quickly.
Blood pressure monitors have a unique reporting requirement:
They need to announce measurement results in segments, following the order of “high blood pressure – low blood pressure – heart rate.”
Traditional solutions often require calling multiple voice files separately, which can easily lead to disjointed announcements or interruptions due to other operations.
The WT588F02KD-32N has been optimized for this scenario with its combined playback function.
With a single B0 instruction, the chip can orchestrate the playback sequence of multiple audio segments, for example, first announcing “systolic blood pressure,” then the specific value, then “diastolic blood pressure” and its corresponding value, and finally “heart rate” and its value.
Even more conveniently, the chip supports pause/resume playback (AA command) and emergency stop (AB command), perfectly addressing emergency operations in medical scenarios. For example, if an emergency requires a pause during a measurement, the user can interrupt the announcement at any time and resume playback after handling the issue, just like the pause button on a video player.
As a core component in medical devices, stability is one of the WT588F02KD-32N’s most important qualities. The chip supports a wide voltage range of 3.0-5.5V, ensuring stable operation even when the battery is low. The compact QFN32 package (4×4mm) enables miniaturization while saving 90% of board space.
More importantly, the chip boasts an industrial-grade temperature tolerance (-20°C to +85°C), ensuring stable operation in both the frigid Northeast and the scorching South. Combined with built-in anti-interference features, the chip operates stably in complex electromagnetic environments, such as homes and community hospitals, providing a highly reliable acoustic and optical engine for smart blood pressure monitoring.
With an aging population and rising health awareness, demand for home medical devices will continue to grow. Highly integrated chips like the WT588F02KD-32N provide device manufacturers with more flexible and efficient solutions and a better product experience for users.
