WT588F02KD-32N Voice Chip for Smart Portable Kettles

Welcome to this session of Waytronic Voice Chip Classroom!

Today’s topic is not about advanced semiconductor manufacturing, but about something closer to daily life—how to make an ordinary portable kettle “smart.” A smart kettle can not only control temperature precisely but also “speak” to tell you the water temperature.

The problems of traditional kettles

Frequent travelers and outdoor enthusiasts are familiar with portable kettles. They are expected to be fast-heating, accurate in temperature control, and easy to carry. But traditional kettles are like “mute workers,” relying only on mechanical thermostats. They lack precision and provide no feedback.

A conventional design uses steam pipes and bimetallic strips to cut off power when boiling is detected. This is simple, but imprecise (±5 °C deviation). Users cannot know the exact temperature and get no voice notification, like driving without a dashboard.

01 – WT588F02KD-32N: Small chip, big intelligence

The WT588F02KD-32N is an integrated single-chip solution with LED driving and voice playback.

Analogy: A traditional kettle is a mute worker; a smart kettle with this chip becomes an assistant with “eyes” (LED display) and a “mouth” (voice).

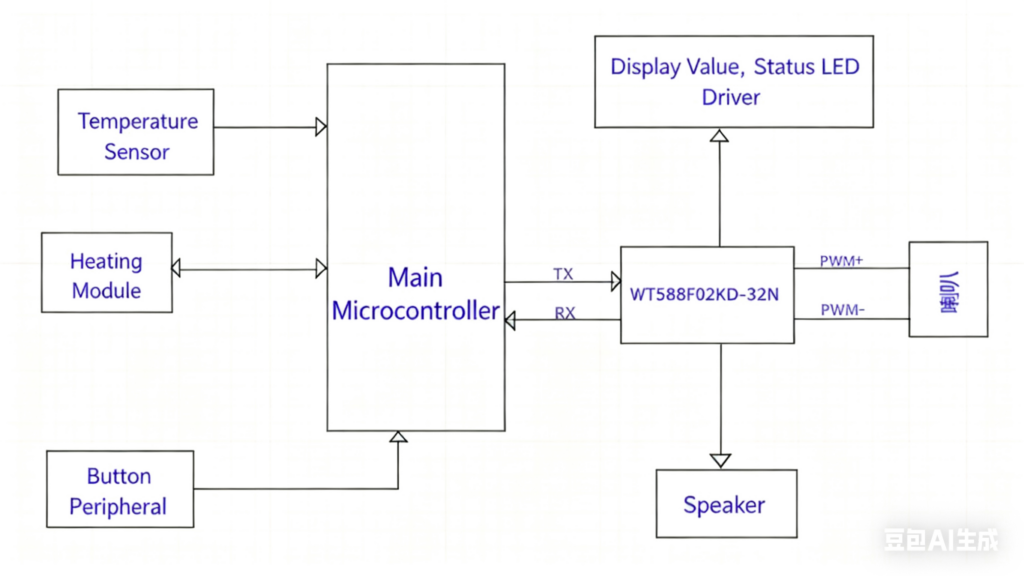

Workflow:

• Heating module raises water temperature.

• Temperature sensor monitors and reports data to MCU.

• MCU compares with preset values, then controls heating.

• WT588F02KD-32N handles two tasks: displaying real-time temperature on LED digits and announcing temperature via voice prompts.

02 – Technical advantages: Six key strengths

1. Cost advantage: Highly integrated design reduces overall solution cost.
2. Simplified circuit: Built-in LED driver eliminates need for extra chips.
3. Voice playback: Enables the kettle to “speak.”
4. Direct LED drive: No external driver required.
5. Low power consumption: Essential for portable devices.

Specs:

• Voltage: 3.0–5.5 V
• 16-bit DSP voice processing
• 32 MHz oscillator
• Supports WAV and MP3
• Up to 170s of high-quality or 320s of standard-quality voice storage
• 32 volume levels adjustable

03 – From concept to real product

System workflow:

• User presses heating button.
• MCU controls heating, sensor tracks water temperature.
• LED display shows real-time temperature.
• When preset temperature is reached, WT588F02KD-32N plays prompts such as “Temperature has reached XX °C” or “Heating complete.”

This design improves precision and usability. Users need not constantly check the kettle; voice prompts provide status updates.

Manufacturers can also customize voice content via PC tools. Options include bilingual prompts or personalized tones.

04 – Industrial significance

The WT588F02KD-32N is not only a chip but also a standardized smart appliance solution. Its integration reduces cost and complexity, enabling more manufacturers to upgrade traditional appliances with intelligence.

For engineers, it means they no longer need to design LED drivers and voice modules from scratch, improving efficiency and reliability. It is like assembling products with ready-made building blocks.

05 – Future outlook

The portable kettle is just one case. Standardized smart chip solutions like WT588F02KD-32N are reshaping consumer electronics. From small appliances to large devices, from simple displays to complex human–machine interaction, voice and display integration is becoming an industry trend.

This reflects consumer demand for smarter experiences and manufacturers’ need to reduce cost and improve competitiveness. Companies like Waytronic are providing the technical foundation for this transformation.

More “mute” devices will become products that can “speak” and “think.” All of this is enabled by innovative chips like the WT588F02KD-32N.

The essence of technological progress: making the complex simple, turning impossibility into possibility, and ultimately making life more convenient and better.
