Smart Lock Radar Technology: Achieve Zero-Wait Auto Unlock

At 7:30 in the morning, you rush to your front door carrying a briefcase and breakfast—only to stop at the door. You pull out your phone, unlock the screen, find the app, tap to unlock, and then stand there quietly for 2–5 seconds, watching the progress bar slowly spin on your screen.

This experience—nicknamed in the industry as “penalty-stand waiting”—is the biggest usability pain point for users of pure Bluetooth smart locks.

For smart lock brands, this is not only a flaw in user experience but also a serious weakness in product competitiveness. As the smart home market matures, consumers’ expectations for “smart” are no longer limited to replacing keys with a phone. What they truly want is instant, seamless unlocking the moment they arrive at the door.

How can we eliminate waiting entirely while maintaining strong security and achieve zero-delay unlocking? This question has long challenged the entire industry.

---

01 – The Triple Dilemma of Pure Bluetooth Solutions

The transition from mechanical locks to Bluetooth connectivity was originally a technological advancement. However, when brands began widely adopting pure smartphone Bluetooth HID solutions, they discovered the path was far less smooth than expected.

The first challenge is the “penalty-stand” waiting experience.
Bluetooth connections must go through several steps—device discovery, pairing, connection, and authentication. This process can take 2 seconds at best, and often 5 seconds or more. Users must stand still at the door waiting—holding bags or carrying children—while watching the connection progress bar crawl across their phone screen.

Even worse, Bluetooth connections may fail because the phone disables Bluetooth to save power or because of environmental interference. Users may have to retry the connection, which goes completely against the original idea of “smart.”

The second challenge is battery anxiety.
To ensure the phone can connect at any time, the lock’s Bluetooth module must continuously or frequently broadcast and scan signals. This is one of the major sources of power consumption in electronic locks.

Frequent battery replacements not only increase user costs but also create significant after-sales service pressure for brands.

The third challenge is uncertain security boundaries.
Pure Bluetooth solutions cannot distinguish between someone passing by and someone intending to unlock the door.

For example:

• A phone inside the house near the door may accidentally trigger unlocking.
• Someone walking past the door outside may cause an unintended connection.

More importantly, Bluetooth cannot perceive the physical environment, meaning it cannot prevent real-world security risks such as tailgating (unauthorized people following someone inside).

These three issues combine to trap pure Bluetooth solutions in a vicious cycle of poor experience, short battery life, and weak security.

---

02 – The Breakthrough: “Sensing + Connectivity”

The key to breaking this deadlock lies in a simple but profound shift in perspective:

A smart lock should not be a passive device waiting for commands.
It should be a spatial interaction node that actively senses the environment and understands user intent.

This is the core concept behind the “Smartphone Bluetooth HID + Microwave Radar” integrated solution.

In this architecture:

• Bluetooth HID verifies who you are (identity authentication).
• Microwave radar determines whether you actually intend to enter (intent and scene perception).

By combining the two, smart locks evolve from passive responders into active service systems.

The workflow is completely restructured.

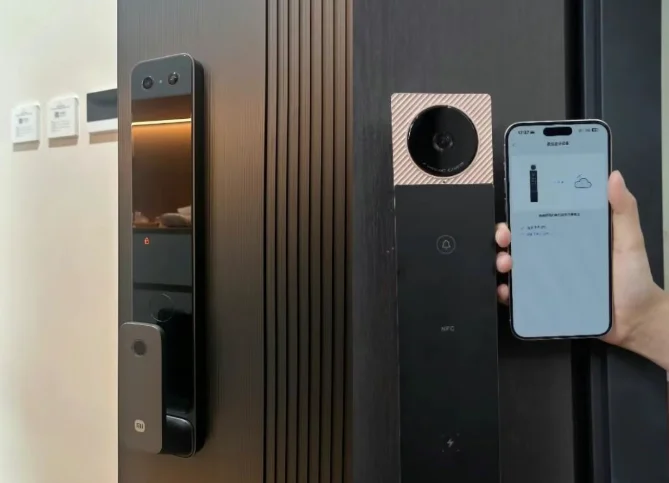

When a user carrying a paired smartphone approaches within 3–5 meters of the door lock, the radar first detects the approaching person and immediately wakes the lock’s main controller and Bluetooth module from deep sleep into connection standby mode. At the same time, the lock’s welcome light or display activates.

The radar then continues analyzing whether the person stops in front of the door, confirming unlocking intent. Once confirmed, the lock’s Bluetooth module quickly pairs with the smartphone on the whitelist.

At this point, when the user raises their hand to operate the lock, the Bluetooth connection is already ready.

If the security policy allows it, once the system confirms that:

• the authorized phone is present,
• the user is standing at the door,
• and Bluetooth authentication is completed,

the door unlocks automatically, allowing the user to simply push the door open.

The entire process becomes smooth and seamless, truly achieving zero waiting.

---

03 – Technological Breakthrough in Ultra-Low-Power Radar

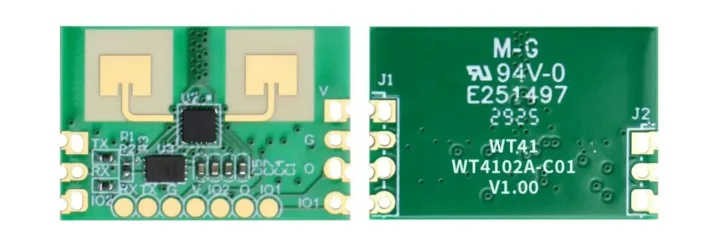

At the heart of this solution is the WT41 series microwave radar sensor from Wintronics.

Despite measuring only 23 mm × 15.6 mm × 1.0 mm, this chip contains remarkable technological capability.

First is extreme power efficiency.
The average power consumption is only 19 μA, with a minimum as low as 4 μA.

This means the radar can operate 24/7 continuously with almost negligible power consumption.

For most of the time:

• the Bluetooth module
• and the main control chip

remain in deep sleep. Only when the radar detects a valid target does it wake the Bluetooth module for a short period of operation.

This can reduce the Bluetooth module’s active working time by more than 90%, significantly extending battery life.

Second is high sensing precision and fast response.

• Maximum detection distance: 15 meters
• Minimum detection distance: 0.5 meters
• Angle coverage: ±60°
• Distance accuracy: ±0.25 meters

The maximum response time is 250 milliseconds, ensuring that when a user approaches the door, the system has already completed wake-up and preparation—making instant unlocking possible.

Third is flexible parameter configuration.

• Default detection distance: 6 meters
• Presence detection range: 0.5–8 meters
• Motion detection range: up to 15 meters
• Communication interfaces: UART / IO

Parameters can be adjusted using PC tools, allowing brands to tailor radar behavior to different product scenarios. Functions such as micro-motion sensing, presence detection, and precise ranging can be flexibly configured.

Microwave radar can penetrate acrylic, glass, and thin non-metallic materials.

---

04 – From Logical Security to Spatial Security

The introduction of radar extends smart lock protection from purely logical security to physical spatial security.

Radar provides accurate spatial positioning and motion recognition, ensuring unlocking occurs only under the precise conditions of:

• an authorized smartphone
• a real person approaching and staying
• and no tailgating risk

The radar can continuously monitor abnormal behaviors such as tailgating or lingering. Before automatic unlocking, the system can add an extra verification step, such as touching the door handle lightly or facial recognition confirmation.

More importantly, radar can precisely detect both approach and departure.

When the system determines that a person has completely left a certain range, it can automatically lock the door.

This is very different from simple Bluetooth-based triggers (Bluetooth disconnections may occur when a phone battery dies or when the phone moves deeper inside the house). Instead, it relies on actual physical presence detection, enabling truly reliable automation.

---

05 – Redefining the Product Power of Smart Locks

The value of the “Bluetooth HID + Radar Sensing” solution goes far beyond solving a few technical pain points.

It fundamentally redefines the product capabilities and user experience standards of smart locks.

Experience:
The system upgrades from “penalty-stand waiting” to zero-wait seamless unlocking or one-tap instant unlocking, eliminating unstable connections and long wait times.

Power consumption:
The radar-triggered, Bluetooth-sleep working model dramatically reduces power usage and significantly extends battery life, solving user battery anxiety and lowering brand after-sales costs.

Security:
A dual verification mechanism combining spatial sensing and identity authentication prevents false triggers and tailgating, upgrading security from logical protection to spatial protection.

Intelligence:
Features such as automatic welcome lighting, automatic locking, and smart home integration transform the smart lock from a standalone security device into the central entry point of the whole smart home system.

As the smart home ecosystem continues to evolve, this kind of product capability upgrade will be crucial for high-end smart lock brands seeking differentiation and market leadership.

From “penalty-stand waiting” to “zero-wait entry,” and from passive response to active sensing, microwave radar is rewriting the technological narrative of smart locks.

This is not just a hardware upgrade—it represents a shift in product philosophy.

When sensing and connectivity truly merge, the smart lock evolves from a cold electronic device into an intelligent companion that understands and serves its user.
