Display · Video · Audio · Wireless — integrated into a single chip.
| Parameter | WT2003Bx | WT2606Bx | WT2606BPx | WT2606BSx | WT2606Dx |
|---|---|---|---|---|---|
View Detail → |
View Detail → |
View Detail → |
View Detail → |
View Detail → |
|
| Screen Size | 0.96″ ~ 2.06″ | 1.3″ ~ 2.06″ | 1.3″ ~ 2.06″ | 2.0″ ~ 7.0″ | 5.0″ ~ 10.1″ |
| Max Resolution | 320 × 480 | 480 × 480 | 480 × 480 | 800 × 600 (RGB) | 1280 × 720 (MIPI) |
| Video Frame Rate | 10 fps (GIF) | 30 fps | 30 fps (AVI) | 30 fps (AVI) | 30 fps (H.264) |
| Core / CPU | General MCU | RISC-V 140MHz | Dual-Core 180MHz | Single/Dual-Core | Dual-Core 320MHz |
| GPU | — | — | 2.5D GPU | — | 2.5D GPU |
| Memory | Built-in Flash | 128Mbit Flash | 768KB SRAM | 32Mbit PSRAM (SiP) | DDR1 up to 128MB |
| Wireless | — | BLE 6.0 | BLE 6.0 | — | WiFi + BLE 6.0 |
| Camera I/F | — | — | — | DVP + SPI-CSI | — |
| Audio DAC | 0.5W Class D | Dual 16bit DAC | Dual 16bit DAC | 107dB SNR DAC | Dual 16bit DAC |
| Touch Channels | 23 (Capacitive) | ✓ | ✓ | ✓ | ✓ |
| Operating Temp | -40 ~ +85°C | -40 ~ +85°C | -40 ~ +85°C | -40 ~ +85°C | -40 ~ +85°C |
| Package | SOP16 / QFN40 | QFN40 (5x5mm) | QFN40 (5x5mm) | QFN68 (7x7mm) | QFN96 / 80 / 68 |
| WT2606B Series Tier | Entry | Wearable Basic | Wearable Premium | Mid-size Camera IoT | Flagship AIoT |
From consumer electronics to heavy industry, the WT2606B Series is trusted by engineers worldwide for its robustness, ease-of-use, and scalability. No matter what screen size or feature set you need, there is a WT2606B Series model for you.
Touch interaction · Voice feedback · Ultra-low standby
Animations · Audio playback · Touch response
Data display · Voice readout · Compact size
UI menus · Parameter display · Touch control
Compare different chip architectures and see how WT2606B Series simplifies display, audio, and wireless integration with a single-chip solution.
| Comparison | WT2606B Series | Audio-Centric SoC | High-End Platform SoC | Low-Power Wireless SoC |
|---|---|---|---|---|
| Core Positioning | Display + Video + Audio + BLE All-in-One | Audio SoC with display interface | RISC-V smart terminal | BLE + Voice + Display |
| Display Capability | 480×480@30fps + 2.5D GPU | Basic SPI display | Strong (MIPI support) | Basic |
| Audio | Dual 16-bit DAC, 107dB SNR | Strong (audio-focused) | Strong | Moderate |
| Wireless | BLE passthrough + OTA | BT/Wi-Fi optional | Wi-Fi / BT | BLE |
| Development Complexity | Serial commands, 1-day integration | Moderate | Complex, self-research required | Moderate |
| Main Trade-off | Higher cost vs entry-level, RISC-V ecosystem growing | Display not a core strength | High complexity, requires self-developed software stack | Limited integration |
The table above compares four common solution types in the market. WT2606B Series is the only one designed from the ground up as a display-first, audio-integrated, wireless-ready single-chip solution.
Not sure which chip fits your project? Pick your application below and get a direct recommendation.
Beauty devices · E-cigarettes · Talking toys · Small appliance panels
Pick WT2003Bx — SOP16 ultra-compact package, lowest BOM, built-in amp + touch
EV chargers · Video doorbells · Industrial HMI · 2.0″~7.0″
Pick WT2606BSx — RGB direct drive + DVP dual camera, no bridge chip needed
Smart home hubs · In-vehicle displays · Medical devices · 5.0″~10.1″
Pick WT2606Dx — WiFi + CAN + MIPI 720P, flagship-grade solution
Smart locks · Appliance panels · “Listen + Speak + Display” closed-loop needed

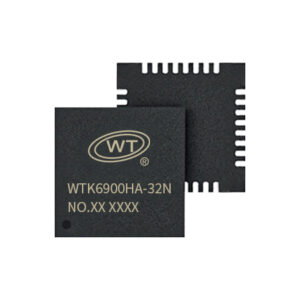

WT2606Bx + WTK6900 (Listen) + WT3000T (Speak) · Or choose models with built-in voice engine
Free online TTS platform, burner tools, reference designs, sample code, and video tutorials — everything you need to bring your TFT display product to market fast.
Type text, generate speech online in 1 minute. Multi-language, multi-accent, male/female/child voices available.
Free with your Waytronic account. Start using it today.
Burner tool · Test board · Reference schematics · Sample code & libraries · Step-by-step video tutorials
All included — no extra cost, no hidden fees.
A TFT Display Driver IC is an integrated circuit that controls TFT (Thin-Film Transistor) LCD screens, managing pixel data, timing signals, and display refresh. Advanced display driver ICs integrate multiple functions including display control, video decoding, audio processing, and wireless connectivity in a single chip.
Waytronic’s WT2606B Series combines TFT display driving (up to 1024×600 resolution), video playback, MP3 audio decoding, and optional Bluetooth/Wi-Fi—eliminating the need for separate MCU, video decoder, and audio chips. This all-in-one solution reduces BOM cost, simplifies development, and is ideal for smart home panels, industrial HMI, IoT devices, and multimedia applications.
Typical alternatives either use audio-centric chips (cheap, but display is an afterthought — low FPS, limited resolution) or platform SoCs (powerful, but you write display drivers, audio stack, and networking from scratch — 3-5 engineers, 6 months). WT2606B Series gives you a turnkey display + voice + wireless system — 1 engineer, UART commands, 4-6 weeks to production.
Very easy. Just use UART serial commands — no complex register configuration or display driver development required. A firmware engineer with no display experience can have a working UI prototype in 2 days. We provide PC-based GUI tools, reference designs, SDK, EVB boards, and 24/7 FAE support.
Pricing varies by model and order volume. Please contact our sales team with your target screen size and annual volume for a formal quote. Samples are available for qualified customers.
Monthly production capacity exceeds 20 million units. Sample delivery within 1-3 business days. Mass production lead time is typically 4-6 weeks after order confirmation. We maintain buffer stock for standard models.
Yes. Standby current is < 100μA, deep sleep < 5μA, making it ideal for smart locks, wearables, and other battery-operated products. The WT2606Bx model also includes BLE 6.0 with OTA support.
They cover different screen sizes and feature sets: WT2003Bx (entry-level, 0.96″~2.06″), WT2606Bx (wearable basic, BLE), WT2606BPx (wearable premium, 2.5D GPU), WT2606BSx (camera + mid-screen, 2.0″~7.0″), and WT2606Dx (flagship AIoT, 5.0″~10.1″ with WiFi+CAN+MIPI 720P). All share the same command set and development tools — upgrade without redesigning your board.
