WT2003Hx Voice Chip: Real-Time Voice Changing & Audio Processing Solutions

If a person’s voice can be seen as a unique “ID card,” then the WT2003Hx is like a magical “voice-changing wizard” that can instantly turn your voice into that of a robot, a cute cartoon child, or even a deep, mature man. Sounds interesting, right?

Before diving deeper into this “wizard,” let’s think about a question: in what kind of situations do we need voice-changing technology?

Imagine you are an event host using a loudspeaker outdoors. If you could instantly switch your voice to a robotic tone full of futuristic feeling, wouldn’t that grab more attention? Or when you are making short videos, wouldn’t adding some sound effects to your voice make your content more engaging?

All these scenarios rely on voice-changing technology.

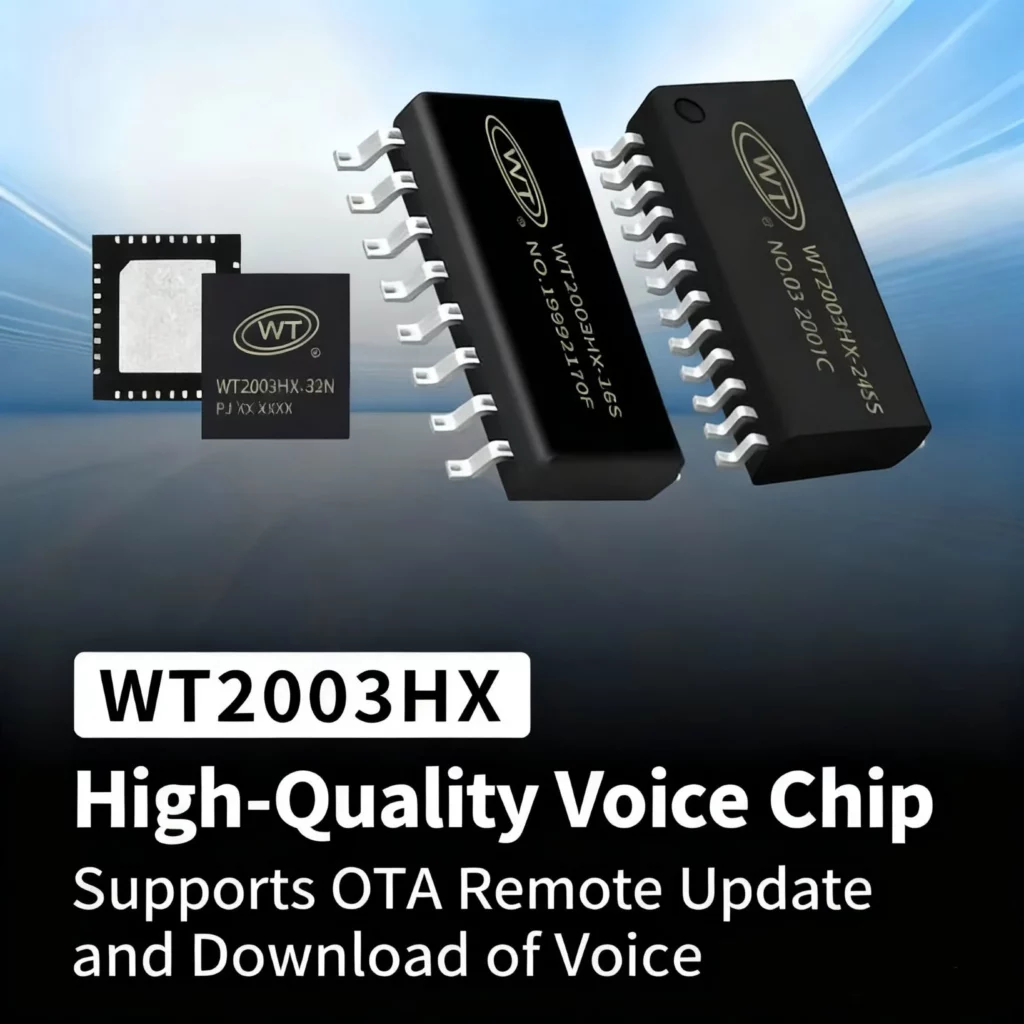

WT2003Hx Chip — Core Architecture and Voice-Changing Principle

The WT2003Hx is a highly integrated voice-processing chip designed precisely for such needs. So, how does the WT2003Hx achieve these magical voice transformations?
Let’s start with its “internal mechanism.” The chip’s core architecture works like a complete sound-processing pipeline:

• The audio acquisition module is responsible for “listening.” Like human ears, it converts sound signals into digital signals through a built-in 16-bit AD converter.
• Next, the digital signal processing unit is responsible for “changing.” This is the “brain” of the system, applying various voice-changing algorithms to transform the sound.
• The storage control module is responsible for “remembering,” storing the processed audio.
• Finally, the audio output module is responsible for “speaking,” outputting the transformed voice through the speaker.

The entire process is smooth and has extremely low latency, ensuring that your speech and the transformed voice are almost perfectly synchronized.

At this point, some might ask, “Voice-changing sounds mysterious—how exactly does WT2003Hx turn a voice into that of a robot or a child?”
In fact, the principle is not complicated.
We can think of sound as a rubber band. When you stretch it, it becomes thinner, the vibration frequency increases, and the sound becomes sharper. Conversely, when you compress it, the vibration frequency decreases, and the sound becomes deeper.
The WT2003Hx achieves voice transformation by adjusting two key parameters of the audio signal: pitch and speed.
It uses a time-domain pitch shift algorithm, which can adjust pitch without changing speed, or change speed while maintaining pitch, or modify both simultaneously, producing an infinite variety of sound effects.

WT2003Hx Chip — Three Core Application Scenarios

Now let’s talk about the three main application scenarios of WT2003Hx, like three brothers with different talents.

1. Voice Broadcasting Transformation

This one excels in outdoor events or public announcements where loud speech is needed.

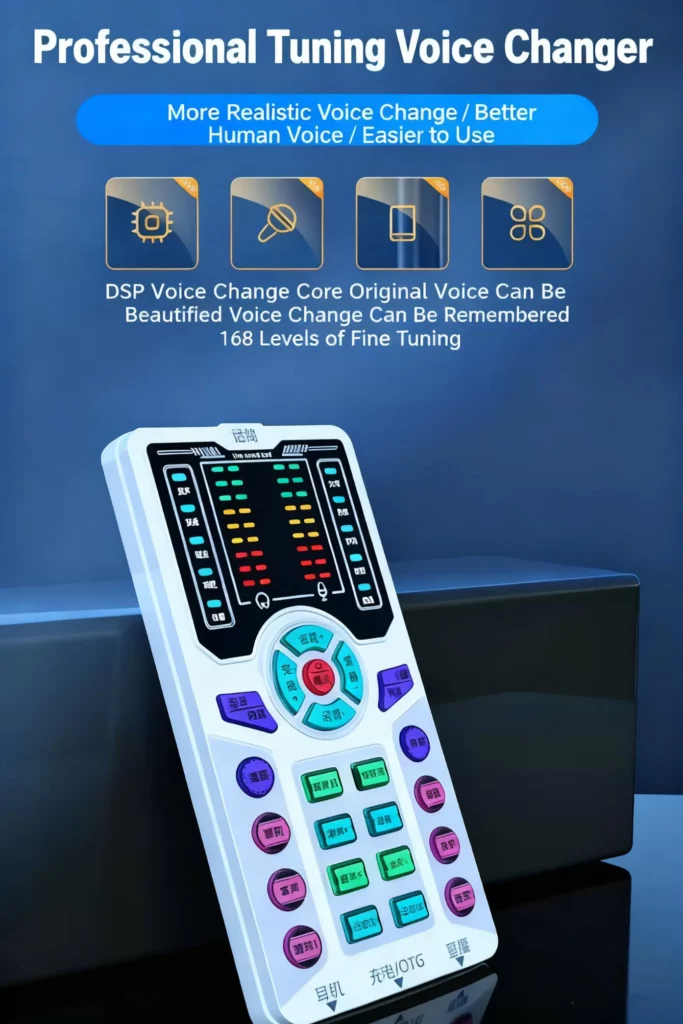

You speak through a microphone, and the system instantly “dresses up” your voice — into a futuristic robotic tone, a cute cartoon sound, or a powerful deep bass effect — and then amplifies it through the speaker.
The key technical metric here is low latency. Imagine saying something and hearing the transformed voice several seconds later—awkward.
By using a 16kHz mono sampling rate with a hardware acceleration module, the WT2003Hx keeps processing delay extremely low, ensuring perfect synchronization between speech and the effect. You can also switch sound modes via buttons or commands instantly—very practical in real-world applications.

2. Voice Mimicry Transformation

This is the most entertaining among the three. It acts like a parrot that repeats what you say—but with a transformed voice.
There are two modes:
• Recorded mimicry — you record a sentence, and the system analyzes and replays it in your chosen sound (e.g., male, female, child, deep voice).
• Real-time mimicry — as you speak, it repeats simultaneously in the changed voice, like a “sound twin.”
The technical challenge here lies in maintaining both accuracy and naturalness. WT2003Hx combines speech synthesis and voiceprint conversion to ensure every word is accurately captured and reproduced while keeping the tone natural.
This is ideal for short video creation, voice chat pranks, or educational toys, making interaction more fun.

3. Recorded Audio Transformation

This works like photo retouching but for sound.
You can import pre-recorded audio files—MP3 or WAV—and apply various transformations.
Want to turn a male voice into a female voice? No problem. Add a robotic narrator to your podcast? Easy. Prank a friend’s recording? Perfect use case.
Its biggest advantage is precise fine-tuning. You can slowly adjust parameters like timbre, pitch, and speed until the result satisfies you.
This makes it popular in podcast production, dubbing, and post-processing of audio.

WT2003Hx Chip — Powerful Hardware Specifications

Why can WT2003Hx handle all these tasks so well?
The answer lies in its powerful hardware.
It has built-in 16-bit AD/DA converters supporting sample rates from 8kHz to 48kHz, meaning it can handle both standard voice-call quality and near-CD-quality audio.
Its signal-to-noise ratio exceeds 85dB, and total harmonic distortion is less than 0.5%, which means the recorded voice is clear and the transformed sound pure, without noticeable noise or distortion.
It also integrates automatic gain control (AGC) and noise suppression algorithms, like an intelligent “sound purifier” that automatically adjusts volume and filters out background noise for clarity even in noisy environments.

---

For storage, WT2003Hx is also impressive.
Through the SPI interface, it supports external Flash memory up to 128MB.
In 16-bit / 16kHz recording mode, 16MB of memory can store about 20 minutes of audio.
It also supports segment-based recording management, allowing different recordings to be saved as separate files for easy access and playback.

In terms of power efficiency, WT2003Hx uses an RISC-V core with fine-tuned power management.
Typical working current is only 35mA, and standby current is less than 10μA, making it ideal for battery-powered portable devices with extended battery life.

WT2003Hx Chip — Hardware Design and Software Development Notes

A great chip must be both powerful and easy to use.
WT2003Hx is designed with developers’ convenience in mind, offering multiple communication interfaces such as UART and I2C for easy integration with microcontrollers.

01. Simplified Application Circuit

An electret microphone connects to the chip’s audio input pin through a simple RC high-pass filter.
After DSP processing, the chip’s DAC output passes through an amplifier (e.g., LM386) to drive the speaker.
This allows a very compact circuit board design.
For stability and noise immunity, decoupling capacitors should be placed on power pins, and shielded cables are recommended for audio lines.
Though small details, these are critical to product performance.

02. Software Development Considerations

Engineers should note:
• Use DMA for handling audio streams to reduce CPU load.
• Implement a logarithmic volume control curve to match human hearing sensitivity.
• Design a power-off protection mechanism to prevent data corruption during sudden power loss.
• Use GPIO interrupts to enable quick button-triggered recording.
These steps ensure efficient, stable, and user-friendly operation.

WT2003Hx Chip — Extensive Application Fields

The WT2003Hx can be used anywhere involving voice interaction or sound transformation.
In smart toys, it makes talking dolls and story machines more vivid and fun.

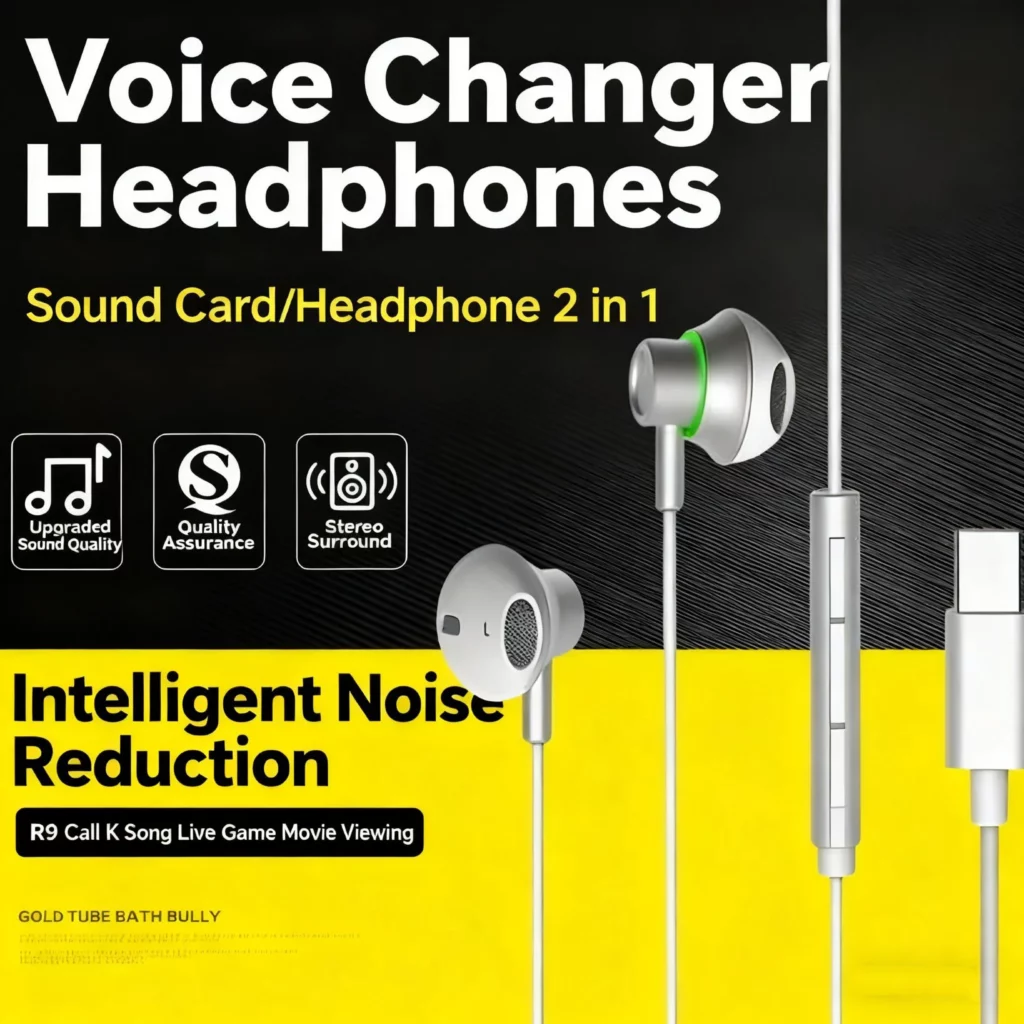

In consumer electronics, it can add voice-changing functions to recorders, create special effects for walkie-talkies, or enhance karaoke microphones.
In IoT devices, it enables smart-home voice interaction, voice prompts for security devices, or in-car voice assistants.
For advanced uses, it can connect to voice recognition chips for wake-up functions, Bluetooth modules for wireless audio transmission, or support UART-based OTA firmware upgrades for product optimization.

Future Development — Smarter and Lighter

Looking ahead, voice transformation still has vast potential.
With AI progress, we can expect more intelligent experiences:
Chips that automatically detect emotional tone and match corresponding voice styles (joy, anger, sadness, etc.);
or hybrid cloud-edge processing, where basic effects run locally while 5G connectivity enables complex cloud-based transformations or celebrity-voice simulations.
Such integration will make voice interaction more natural, fun, and personalized.

By now, you should have a comprehensive understanding of WT2003Hx.
With low-latency real-time processing, rich transformation algorithms, highly integrated hardware, and flexible development interfaces, it performs exceptionally across voice broadcasting, mimicry, and recording applications.
For developers, WT2003Hx provides a reliable hardware platform and full development support to quickly turn ideas into products.
For end users, products based on this chip bring new enjoyment and creativity to daily life.

That is the charm of WT2003Hx—not only a technologically advanced voice-processing chip, but a bridge between imagination and reality, technology and fun.
In this era of infinitely changeable sound, let us look forward to more exciting applications that WT2003Hx will bring to the world of voice interaction.

A small chip that redefines intelligent voice interaction experiences in electronic products.
