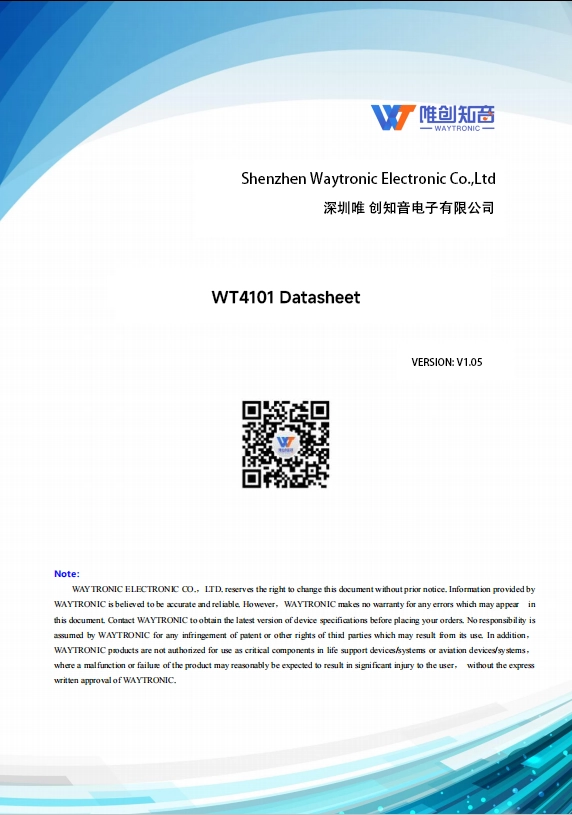

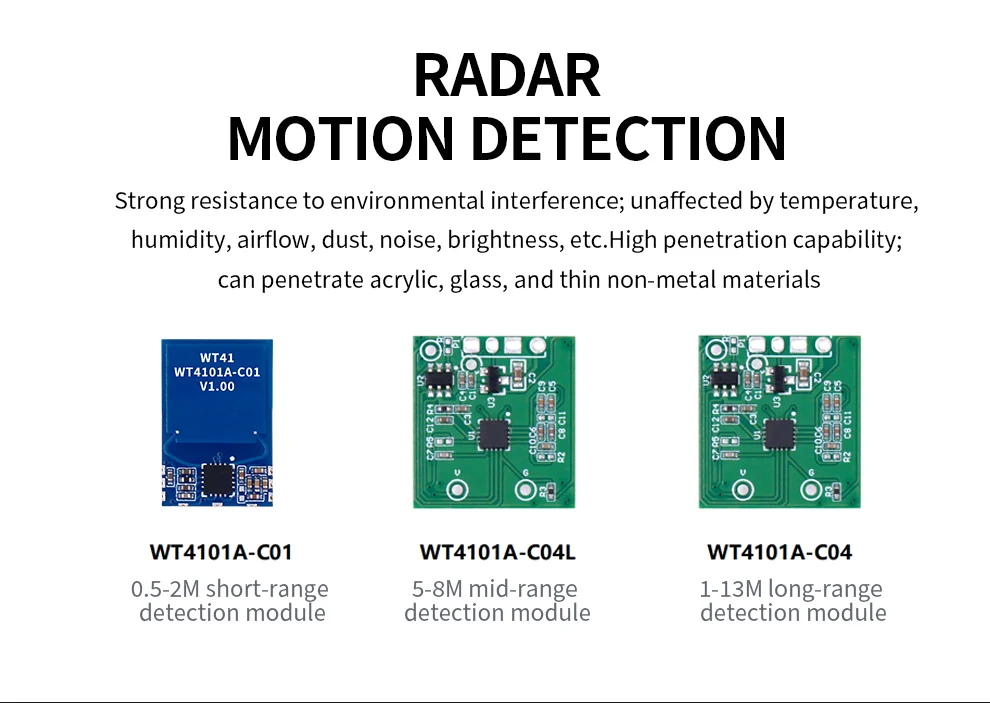

| Image | Model | Detection Range | Operating Voltage | Current | Output | Module Size | Application | Datasheet |
|---|---|---|---|---|---|---|---|---|
|

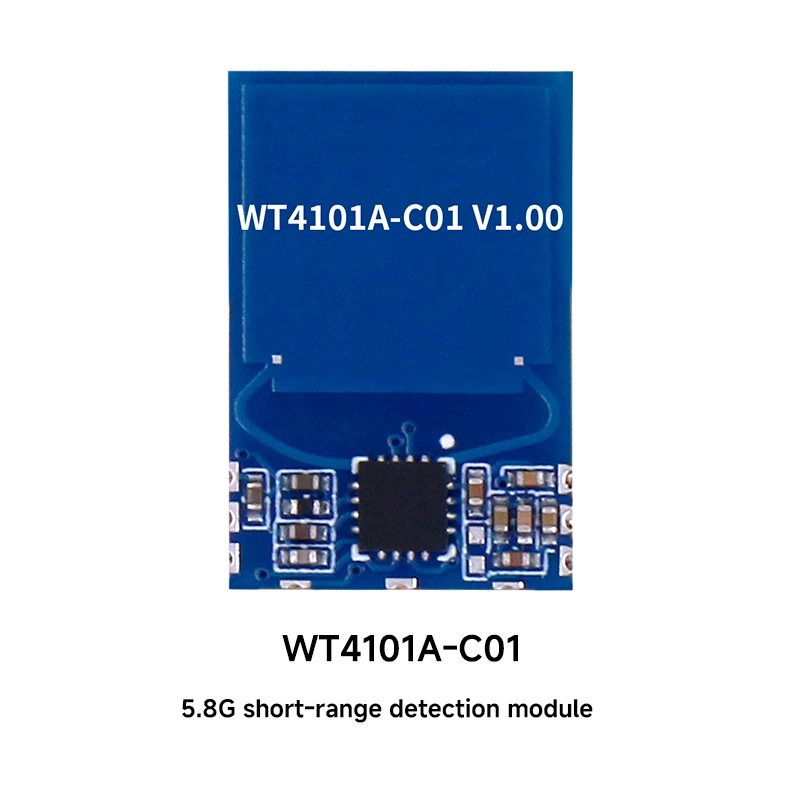

WT4101A‑C01 | 0.5‑2 m | 2.8‑3.5 V | 880 μA / 9.6 mA* | IO/PWM | 18 × 12 × 1.6 mm | Short‑range | Download |
|

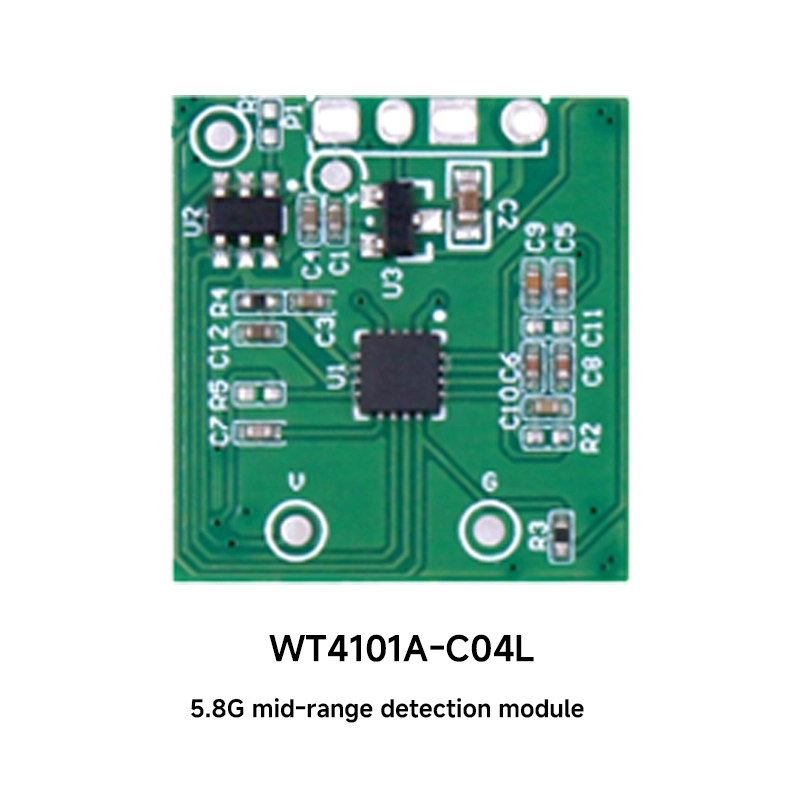

WT4101A‑C04L | 1‑8 m | 4‑12 V | ≥42 μA | IO/PWM | 19.5 × 18 × 1.6 mm | Low‑power | Download |
|

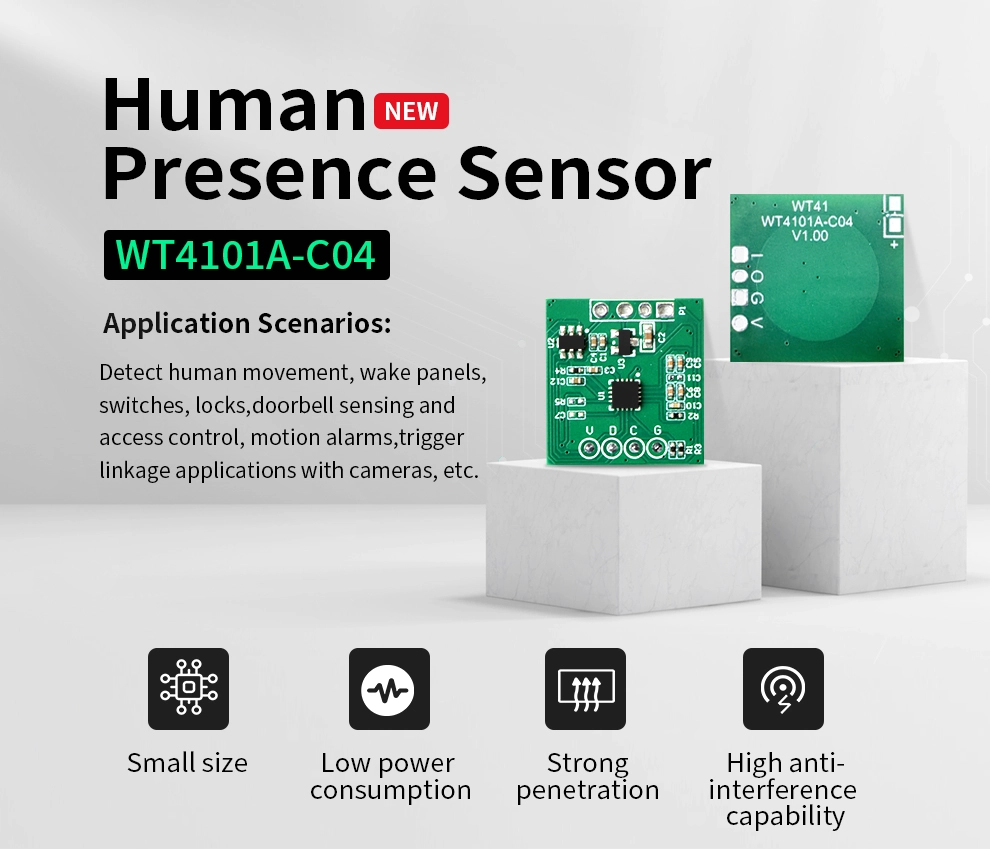

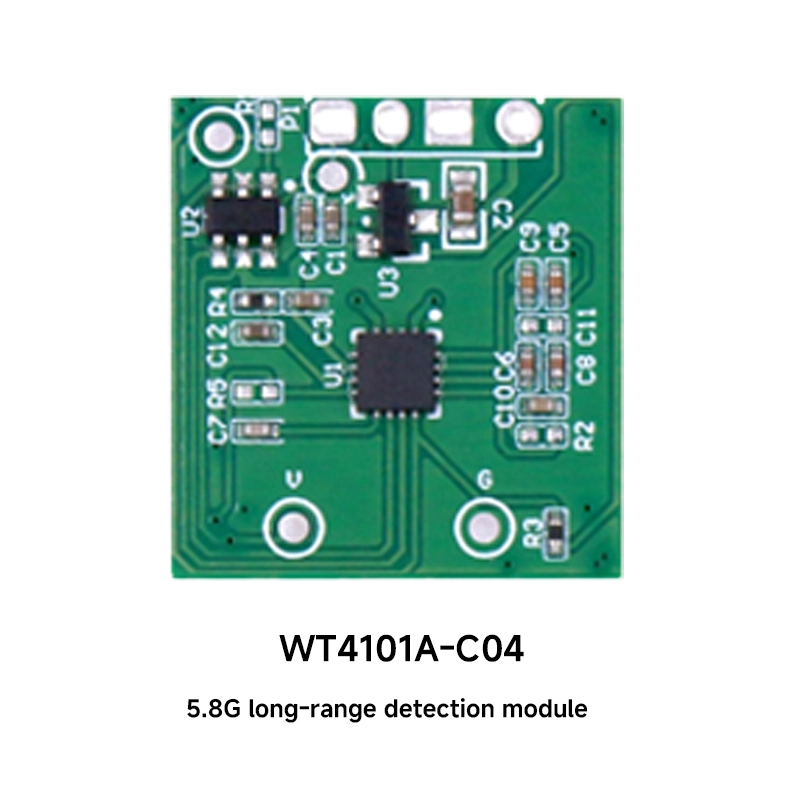

WT4101A‑C04 | 1‑13 m | 4‑12 V | 880 μA / 9.6 mA* | IO/PWM | 19.5 × 18 × 1.6 mm | Long‑range | Download |
Compact modules from 18 × 12 × 1.6 mm; standby current down to 42 µA (C04L), typical ~880 µA — suitable for battery-powered and space-constrained products.
Unaffected by temperature, humidity, airflow, dust, noise, brightness or darkness — stable detection in harsh indoor environments.
Can penetrate acrylic, glass, and thin non-metallic materials, enabling reliable hidden installation behind plastic, wood, or other non-metallic panels without affecting detection performance.
Built-in MCU with multiple digital filtering algorithms: 50 Hz/60 Hz power-frequency interference suppression and WiFi / other wireless-communication interference algorithms — reduces false triggering.
Integrated photosensitive detection with adjustable sensitivity, supporting flexible day/night detection and scene-based triggering control under different ambient lighting conditions and application environments.
Output signal supports IO/PWM with a 0/3.3 V logic level and 3 s output delay, enabling easy MCU integration and reliable control. Compatible with WT300 voice modules for combined sensing, control, and voice feedback applications.
Perceive human movement to wake up panels, switches, door locks and doorbells.
Inductive access control, induction alarms, and trigger linkage applications with cameras.
Used in induction ceiling, bulb, panel, downlight, and mirror lights.

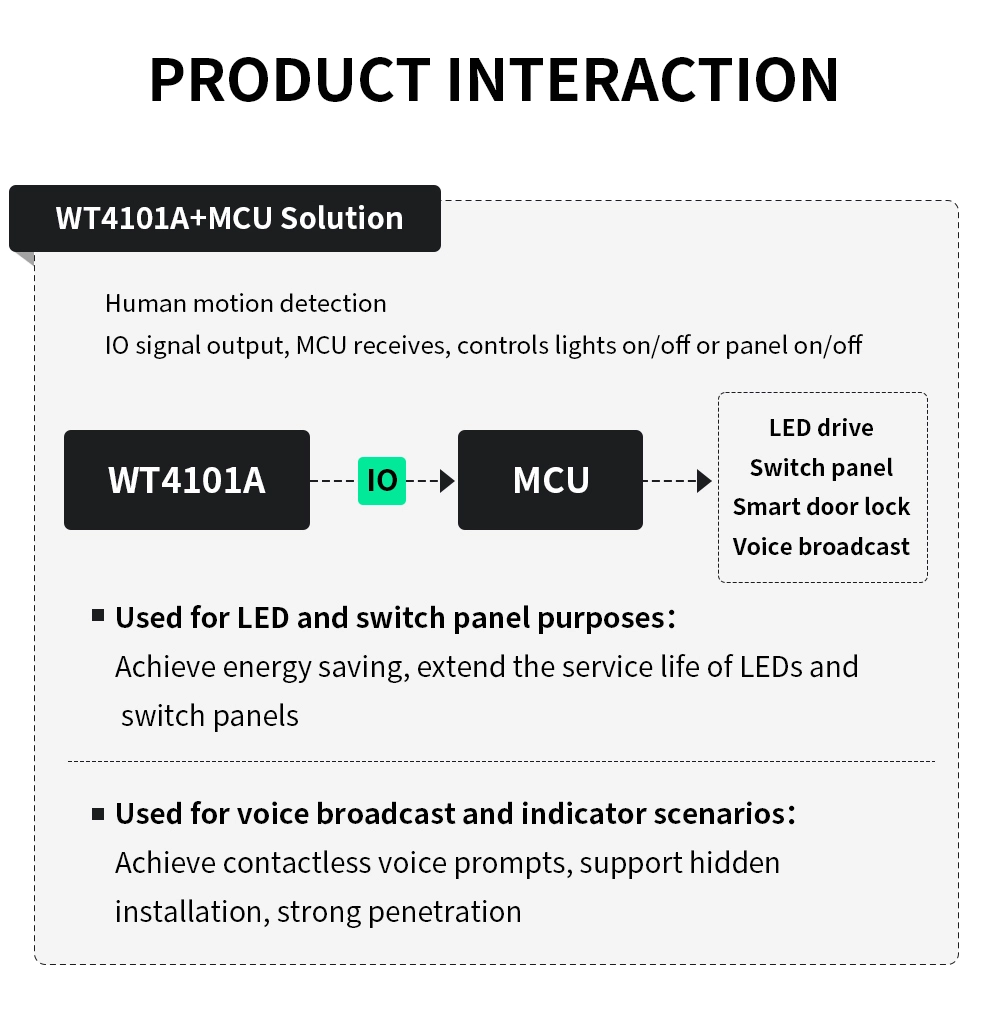

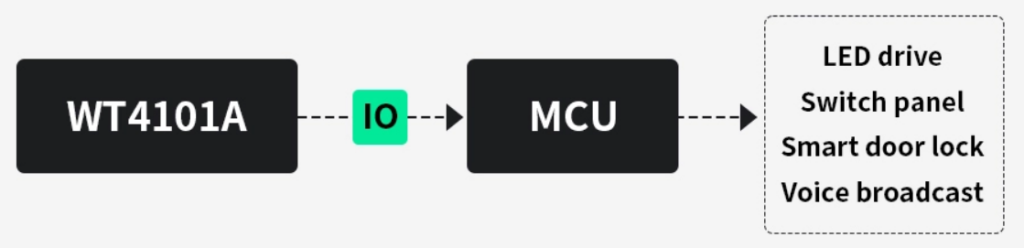

Human motion detection
I0 signal output, MCU receives, controls lights on/off or panel on/off

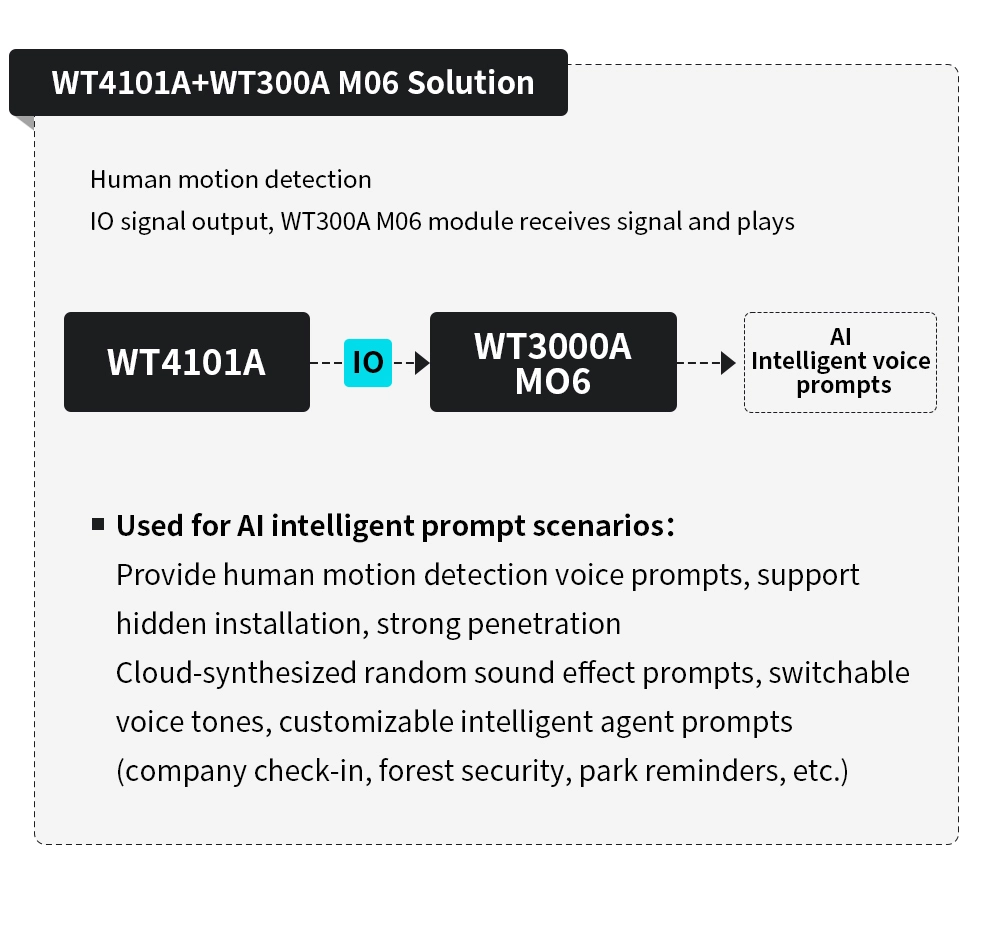

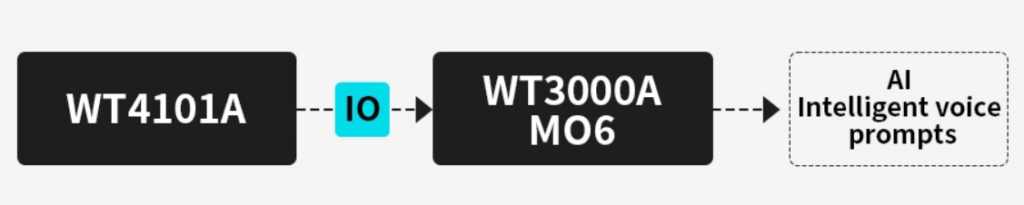

Human motion detection
I0 signal output, WT300A M06 module receives signal and plays

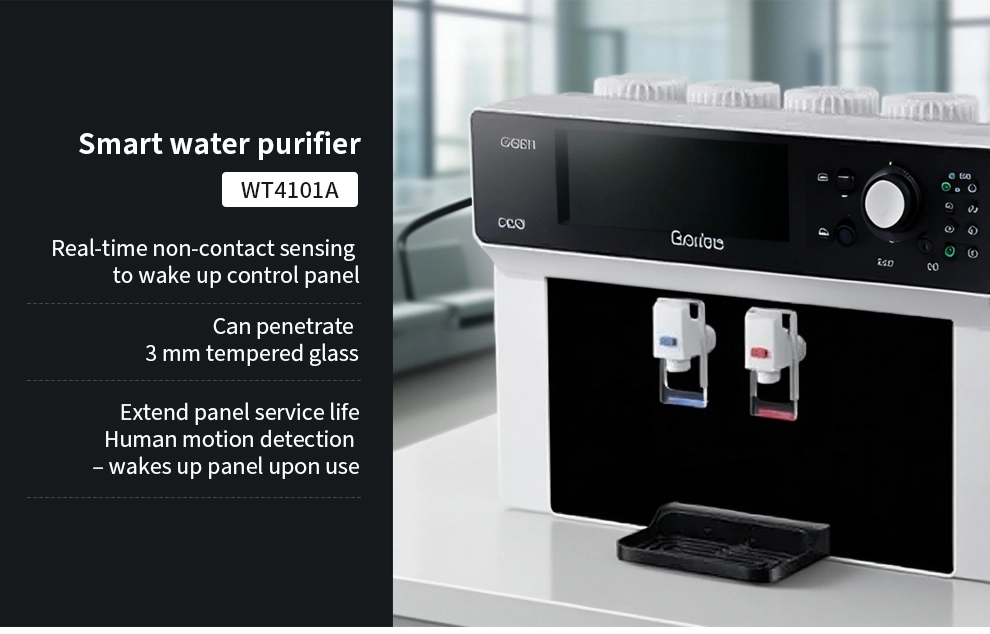

Sensor：WT4101A
Real-time non-contact sensing to wake up control panel
Can penetrate 3 mm tempered glass
Extend panel service life
Human motion detection- wakes up panel upon use
Sensor：WT4101A + WT3000A
Al + sensing for smarter interaction
Lower power consumption, longer service life
Customizable device roles, such as retail brand promoters, forest fire safety officers, and reservoir safety officers
With MCP plugin integration, it can access location, weather, music, real-time news, and more.

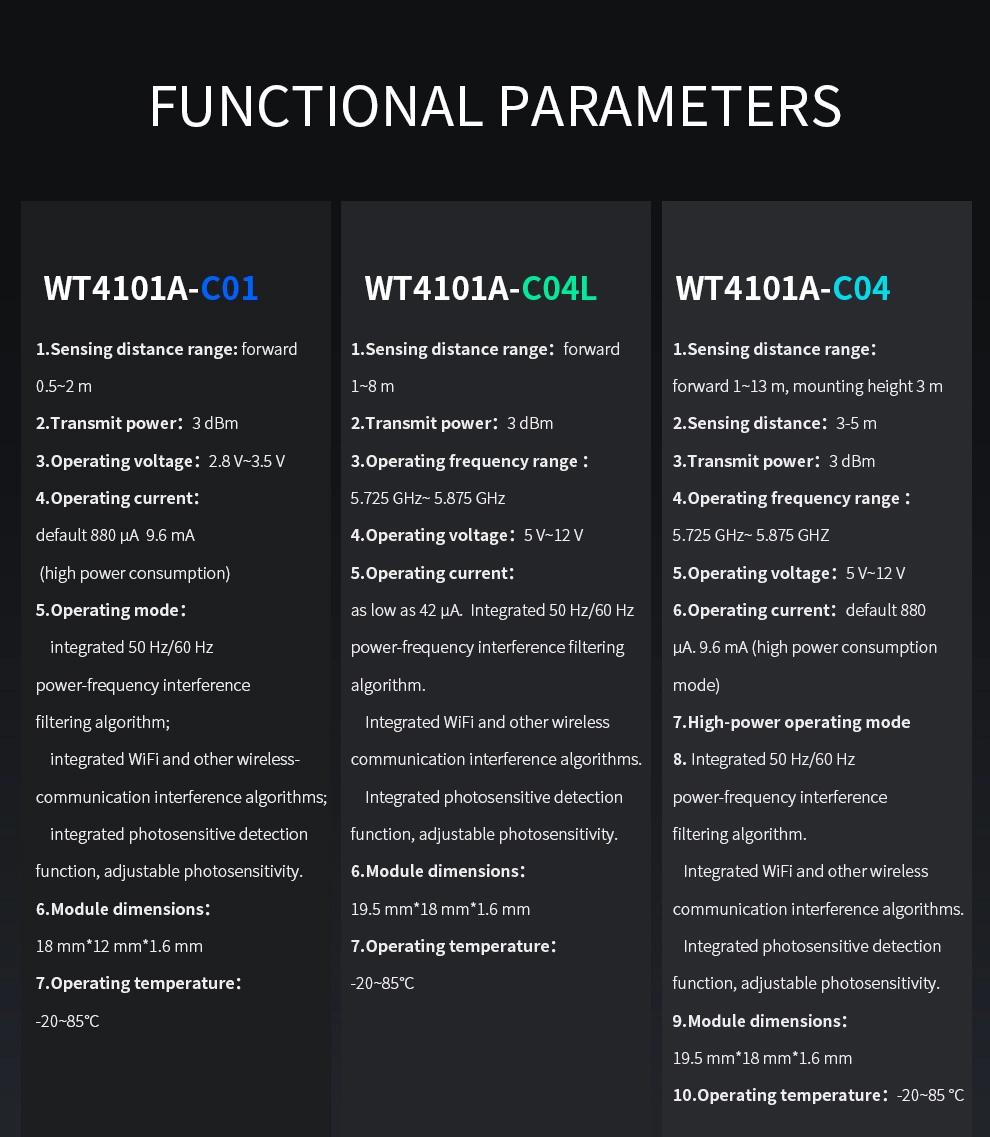

The WT4101A-C01 detects 0.5–2 m (frontal), the WT4101A-C04L detects 1–8 m, and the WT4101A-C04 detects 1–13 m (3–5 m when mounted at 3 m height). Ranges are tested indoors with a 170 cm tester (65–75 kg) walking at 1 m/s; actual distance varies with installation scenario.
WT4101A-C01 operates at 2.8–3.5 V. WT4101A-C04L and WT4101A-C04 operate at 4–12 V. Use a low-ripple supply (ripple within 50–100 mV) to avoid false alarms.
C01: default 880 µA, 9.6 mA in high-power mode. C04L: as low as 42 µA. C04: default 880 µA, 9.6 mA in high-power mode.
IO/PWM output at 0/3.3 V with a 3 s output delay — an MCU-friendly logic-level signal, also compatible with WT300 voice modules.
Yes, it can penetrate acrylic, glass and thin non-metallic materials. However, avoid mounting metal, glass or ceramic directly in front of the antenna, as this affects the sensing effect.
Keep the antenna away from metal, high-current circuits and the drive power supply (rectifier bridge, transformer, switching tube); use a low-ripple power supply; keep more than 1 m from routers and high-power wireless equipment; and install multiple radar sensors more than 2 m apart.
Choose by detection distance: C01 for up to 2 m short-range applications, C04L for low-power mid-range (up to 8 m) applications, and C04 for long-range detection up to 13 m.
