Preface
The WTV380C-8S audio IC integrates audio decoding, amplification, and storage functions, enabling smart locks to easily achieve high-quality voice prompts and low-power consumption design.
Summary
With the rapid development of smart electronic locks, voice prompts have gone from a nice-to-have to a must-have. Imagine arriving home and hearing a clear, pleasant voice tell you, “Verification successful, welcome home!” Wouldn’t that be a much more heartwarming experience than a cold indicator light? However, implementing such voice prompts presents developers with significant challenges. Traditional communication methods weigh heavily on developers – let’s first examine the challenges faced by traditional MCU solutions, which are like three heavy mountains weighing down developers.
Challenges of Traditional Solutions
The first major obstacle is complex hardware design – conventional MCUs require external codec chips, flash memory, and amplifier modules. This is like forming a band, requiring a variety of instruments and audio equipment, and every step must be meticulous.
The second major obstacle is high cost. Multi-chip collaboration means increased bill of materials and a more complex PCB design. The third major obstacle is the technical barrier. Traditional solutions rely on high-speed IIS signal transmission, which consumes large amounts of system resources and is difficult to develop. This is like requiring every programmer to be an audio processing expert.
Solution
So, facing these challenges, how can we overcome them? This is where our protagonist today comes in
—
the WTV380C-8S audio IC!

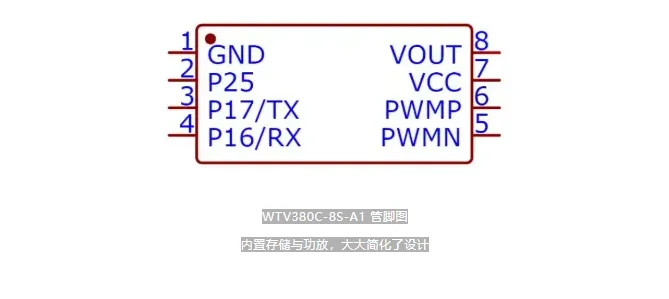

WTV380C-8S Voice Chip: Designed specifically for electronic locks, this single chip completes the entire audio decoding, storage, and playback process.
The WTV380C-8S is like a “Swiss Army Knife” tailor-made for voice functions in electronic locks. Its greatest strength lies in its high level of integration—it condenses functions that once required multiple chips into a single, compact chip.
First, it innovatively integrates a UART peripheral and a 0.5W speaker direct-drive amplifier, achieving a signal-to-noise ratio of up to 90dB. Imagine this: it’s like being in a quiet library, hearing every word clearly, without any distracting noise. Developers no longer need to worry about external components; a single chip handles the entire audio decoding, storage, and playback process, truly achieving “one chip in hand, worry-free voice.” Even more impressive, through a standard UART interface, it can smoothly play 32Kbps MP3 audio at a baud rate of just 115200, significantly reducing the performance requirements of the host MCU. At the same time, the chip also supports direct playback of built-in audio, providing a true plug-and-play solution for the voice prompt function of electronic locks.
WTV380C-8S Audio IC – The Optimal Solution for Sound Quality, Cost, and Development Difficulty
The WTV380C-8S achieves a perfect combination of “three lows and one high.” Let’s use a vivid comparison to understand the changes brought about by the WTV380C-8S.
The traditional MCU + CODEC + PA solution is like building a complex sound system—it requires a decoder, amplifier, and various connecting cables. While the sound quality is good, it’s also costly and difficult to develop. The straightforward MCU decoder + PA solution, while cost-effective, offers subpar sound quality. It’s like playing music on a radio—the sound is natural but not quite what you’d expect.

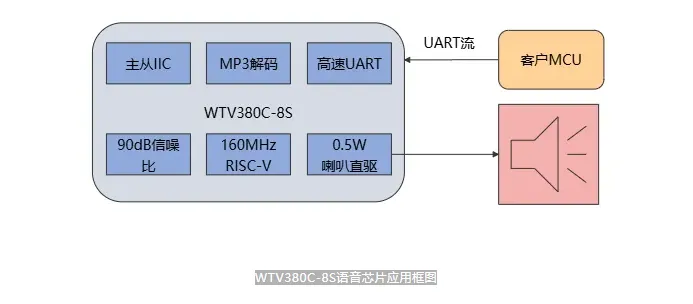

The WTV380C-8S voice chip has completely changed this situation, achieving the perfect combination of “three lows and one high”: high sound quality, low cost, and low development difficulty. It features a built-in PA, supports UART streaming decoding of 32Kbps MP3 files, and offers a high signal-to-noise ratio, making it a truly optimal solution.
WTV380C-8S Audio IC: Tailor-Made for Electronic Locks
Targeting the specialized application scenario of electronic locks, the WTV380C-8S demonstrates unique competitive advantages.
Electronic locks are usually battery-powered and have extremely strict requirements on power consumption. The low power consumption characteristics of WTV380C-8S are highly consistent with this demand, just like an energy-saving engine tailor-made for electronic locks.
The chip supports a wide operating temperature range of -40°C to +85°C, ensuring stable operation of electronic locks, whether in the bitter cold of Northeast China or the scorching heat of Southern China. The built-in audio amplifier can directly drive the speaker, eliminating the hassle of external circuit design. Whether it’s unlocking prompts, low-battery alarms, or operational guidance, the chip delivers real-time, high-fidelity audio responses.
Even more thoughtfully, the simple and easy-to-use UART control protocol makes development easier than ever. Developers can quickly customize voice functionality, significantly shortening product time-to-market. This is like moving from complex manual production to standardized assembly line production, with noticeable efficiency gains.

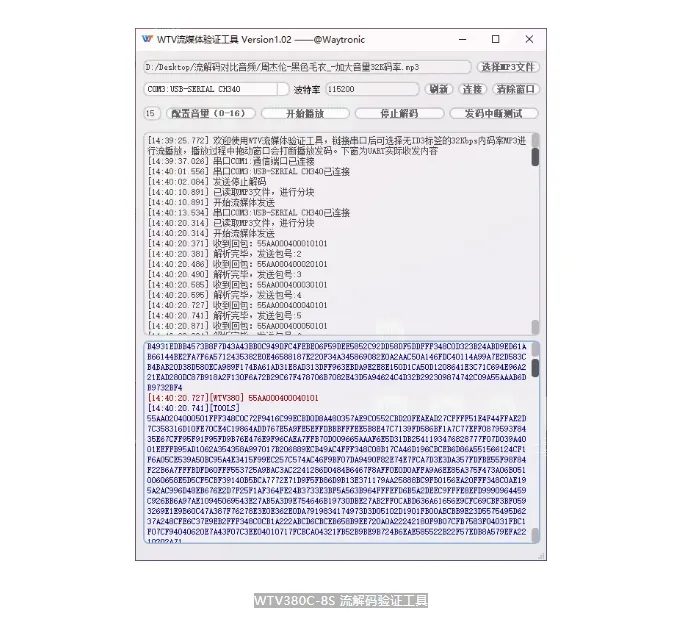

Waytronic provides engineers with comprehensive supporting tools for the WTV380C-8S chip, including Datasheet, demo board verification tools, and comprehensive development support services. This one-stop service model allows developers to focus on product innovation without overly consuming fundamental technical issues.
In this era of the Internet of Everything, voice interaction is becoming the mainstream method of human-computer interaction. The WTV380C-8S chip, with its superior performance and extreme integration, provides a perfect solution for voice-enabled upgrades in the electronic lock industry and contributes significantly to the development of the entire smart home ecosystem.
